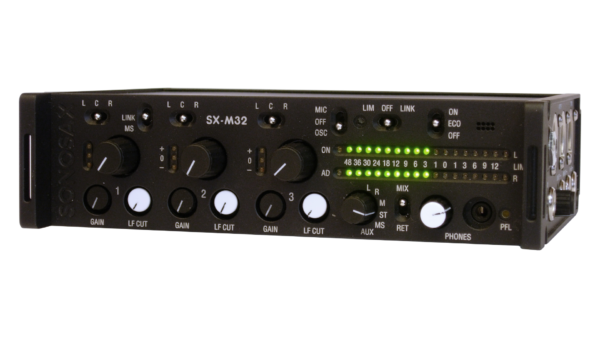

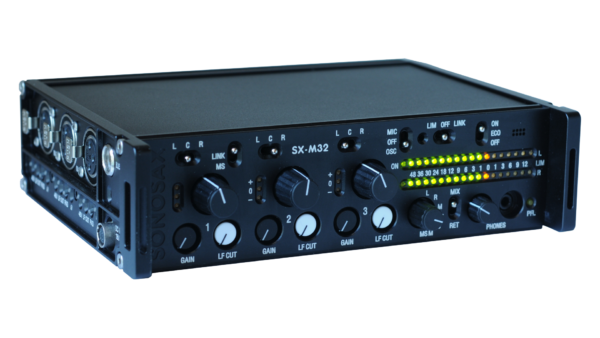

SX-M32

CHF 2'840.00CHF 3'170.00

3 channels/stereo mixer with digital output

Description

Compact and light weight high quality 3 channels Stereo ENG/EFP Mixer
Ideal companion for News – ENG – small documentaries – Folley’s – Music
Small and robust construction, low power consumption

KEY FEATURES

  • Electronically balanced Mic/Line Input, XLR connectors
  • 48V Phantom for Mic power
  • Pre LF Cut for rough wind conditions – PAD – Phase reversal

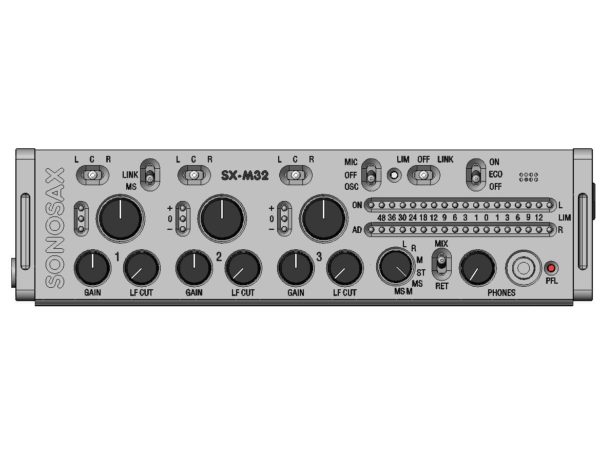

  • Input trim on the front panel for easy Mic Gain adjustment, retractable
  • Individual Input Limiters
  • Sweep LF Cut, retractable
  • Mix routing L-C-R
  • Stereo and MS linking of channel 1 and 2
  • M/S Decoder
  • PFL for rapid channel monitoring in headphones
  • Stereo Bus Input for external link
  • Switchable Limiter on the Mix
  • Comprehensive Monitoring selector with M/S decoder
  • LED peak-meters with fast ballistics
  • Electronically balanced Line Outputs, XLR connectors
  • Stereo Sub-Out, Line/Mic level on TA-3 connector
  • Mono Line/Mic level output for wireless link to camera on TA-3 connector
  • Adjustable Return input for monitoring, assignable to the Mix
  • AES Digital Out, 48 and 96kHz@24bits / choice for 48/16 or 192/24

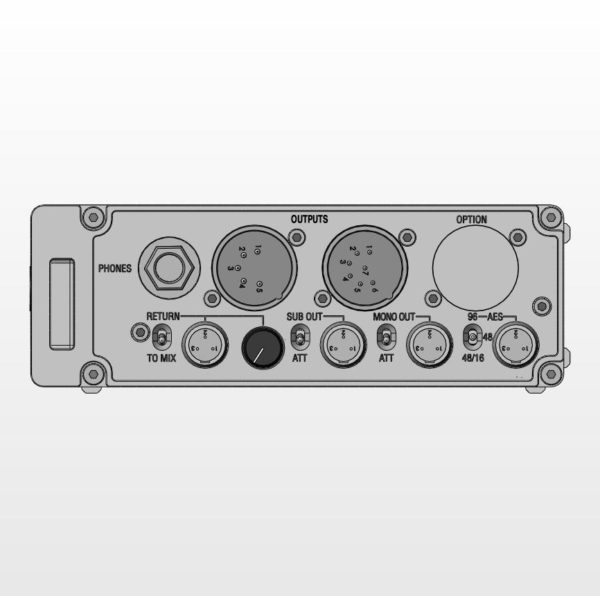

  • Choices of Right side panel: Standard or with channels Direct Outs Pre & Post
  • Optional multi-way connectors

Machined aluminum housing
Dimensions: 176 x 138 x 46 mm / 6,93″ x 5,43″ x 1,75″
Weight: 800 grams (1,76 lbs) with batteries

Powered by 6x AA batteries or external 6 – 18 VDC

SX-M32 user manual EN
SX-M32 user manual FR


SX-M32 block diagram
SX-M32 Versions and options panels


Ordering form and configuration sheet
Formulaire de commande et de configuration

Options:

Accessories:
