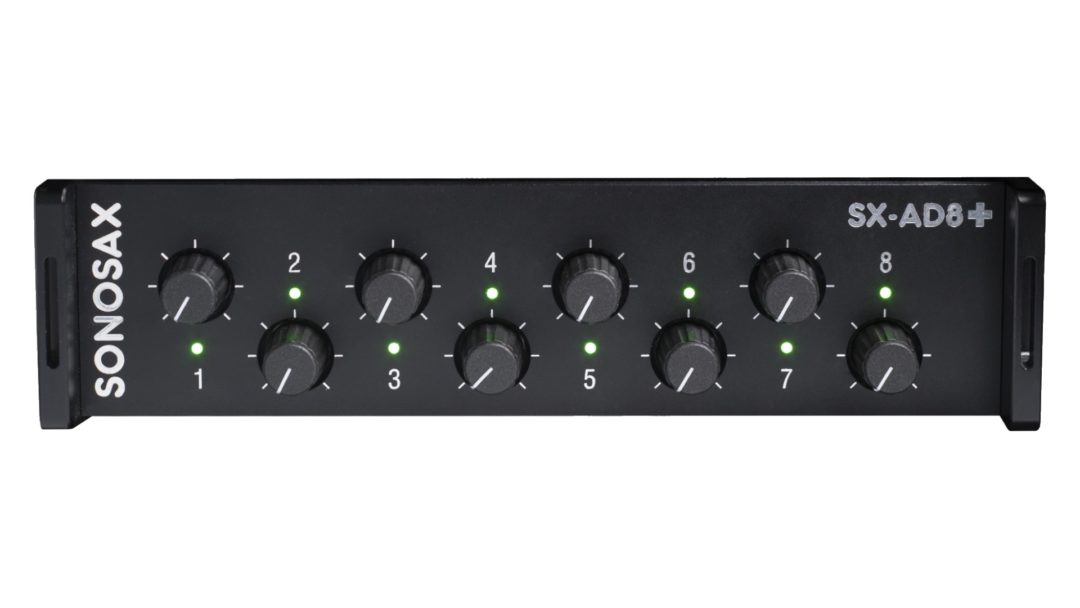

SX-AD8+

CHF 4'500.00CHF 4'930.00

8 Microphones/Lines Preamplifier with AES outputs

Clear
SKU: 044300 Category:

Description

Inputs / Outputs

  • 8x Mic/Line inputs, electronally balanced on XLR-3F, with phase reversal,
  • 48V phantom and LF cut with level control on the front panel
  • 4x AES3 transformer balanced outputs on multi-pin connector
  • Optional audio over IP on RJ45 connector, such as AVB, Dante & Ravenna

Performances

  • 135 dB (A-weighted) overall dynamic range
  • 90kHz overall frequency response @192 kHz
  • 40 bits processing
  • 24bits 48/96/192 kHz

User Interface

  • Using front panel push-buttons
  • WiFi dynamic web interface
  • through SX-R4+ user interface

Powering

  • External DC 9..18V on Hirose 4pins

Mechanical

  • Machined aluminum housing
  • Overall dimension: 200 x 50 x 144.5 mm (7.87” x 1.96” x 5.7”)
  • Weight: 850g / 1.9lbs

Block diagram
User manual

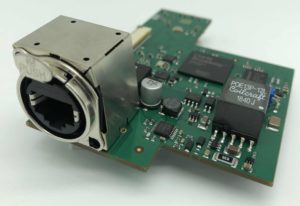

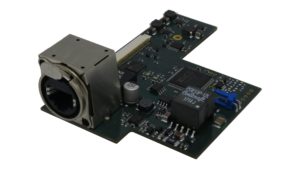

AVB option card:

Accessories:

Firmware Update procedure: see product user manual, chapters 7.3 and 7.4


Version 1.4
Default firmware
