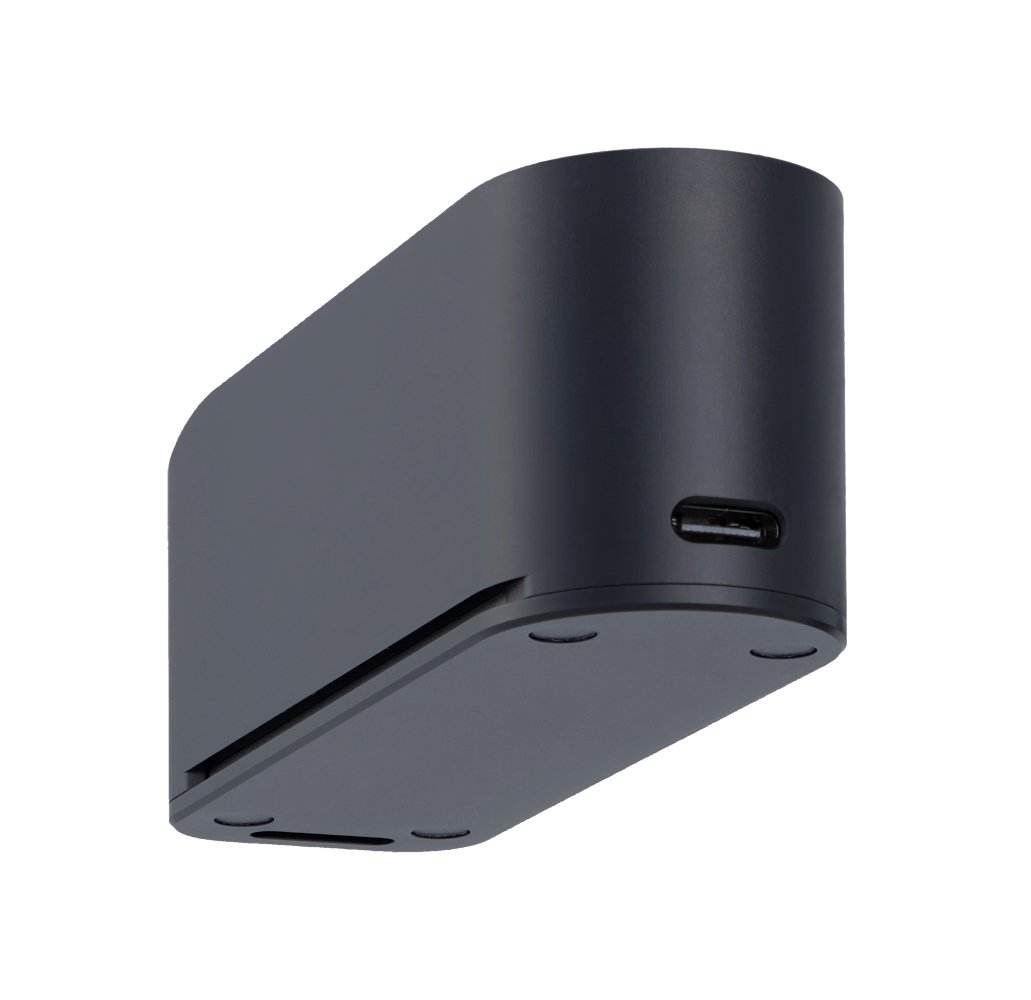

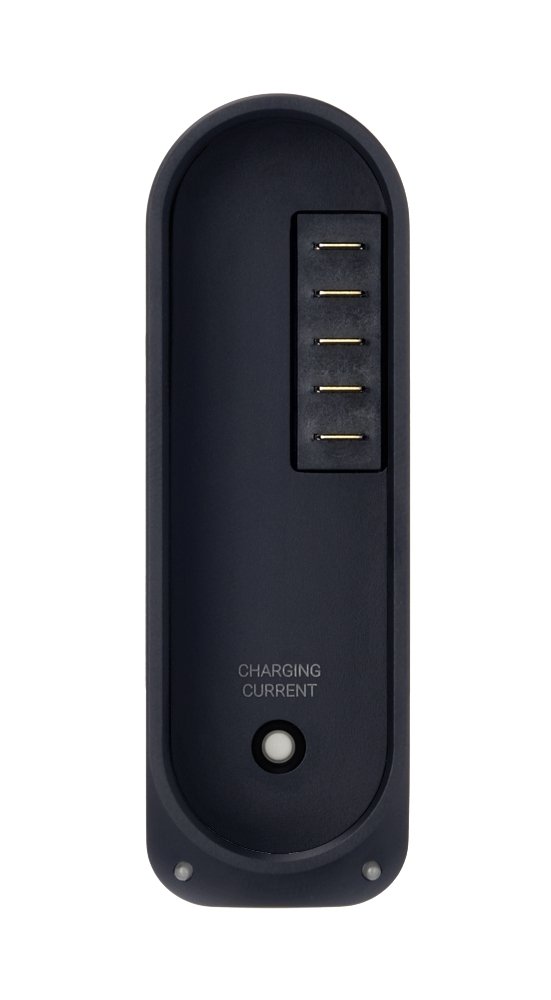

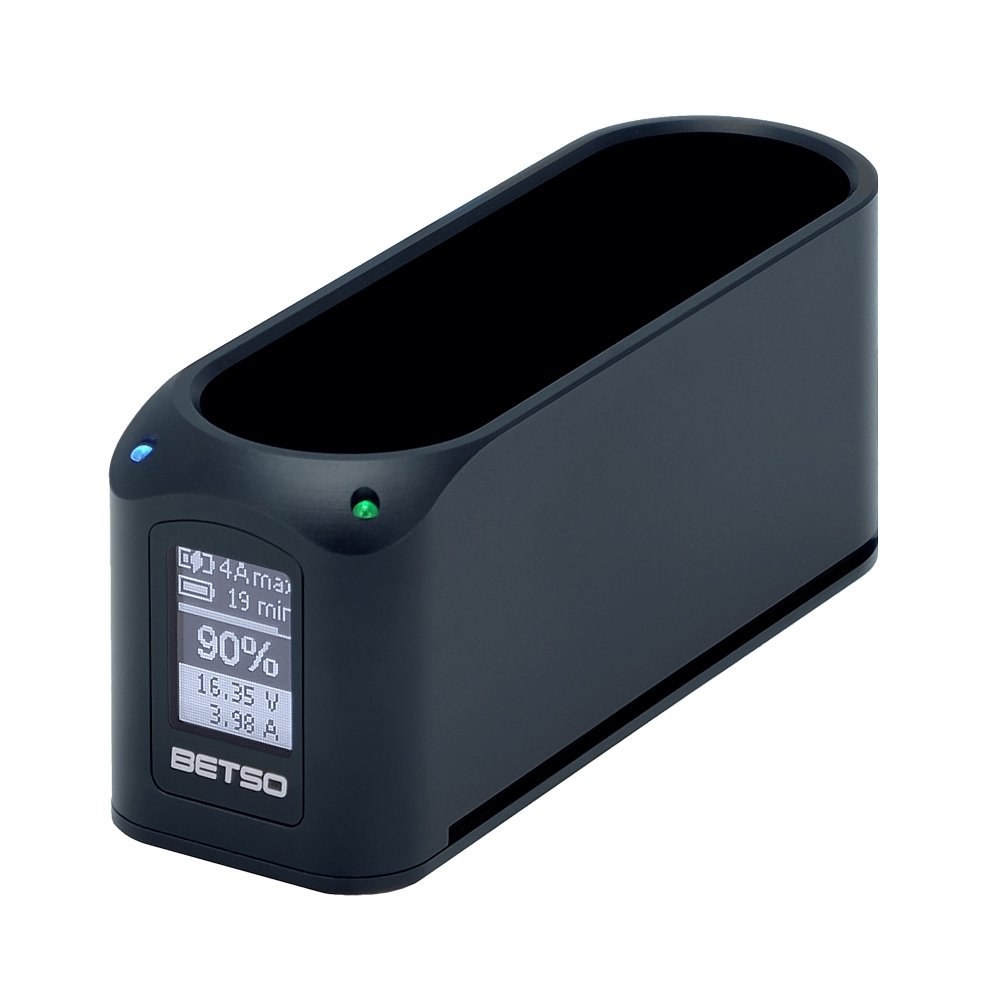

Li-Ion Smart Battery Charger RRC-SMB-MBC

CHF 190.00

Li-ion smart battery charger

SKU: 002511 Category:

Description

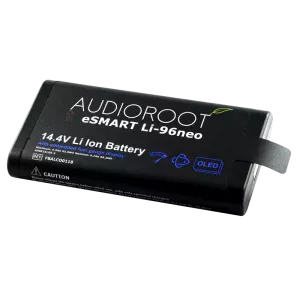

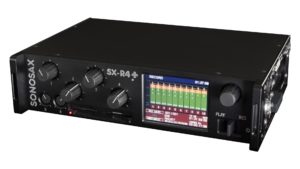

Battery charger for the SX-R4+ Li-Ion Smart Battery

  • 50 Watts desktop battery charger for the standard battery form factors RRC2040, RRC2040-2, RRC2054, RRC2057 or compatible smart batteries with a similar footprint (e.g. 204x range, 205x range, etc.)
  • Single Bay Charger
  • Optimized charging process by using RRC batteries:
    – Higher charging cycles
    – Faster charging
  • Simple operation – Plug and Play

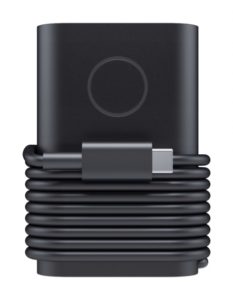

  • External power supply for worldwide use
  • Country specific AC input cables available

Input

  • voltage: 19-26 VDC
  • current: 2800 mA max
  • power: 50W

Output

  • voltage range: 0 to 17.4 VDC
  • current range: 0 to 4.8 A
  • voltage tolerance: +/- 1% max
  • current tolerance: +/- 10% max @1A, +/- 3% @ 4A
  • protection: short circuit, over temperature shutdown, input-/output over current

General

  • efficiency: ~95% at 100% load
  • indicator: multi-color LED (green, red, orange)
  • battery types: standard battery from factors 2040, 2040-2, 2054, 2057 or smart batteries with a similar footprint
  • green procurement: RoHS 2011/65/EU, WEEE 2012/19/EU, Chinese RoHS

Environmental

  • cooling: convection cooled
  • temperature: 0°C to 40°C (operating), -10°C to 70°C (non-operating)
  • pressure & altitude: 1060hPa to 795hPa, -382 to 2000m (operating), 1060hPa to 572hPa, -382 to 4570m (non-operating)
  • humidity: 5% to 95% r.H., non-condensing
